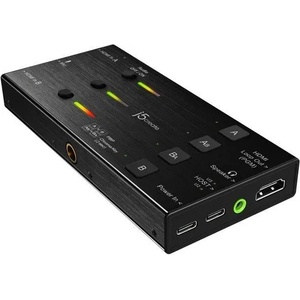

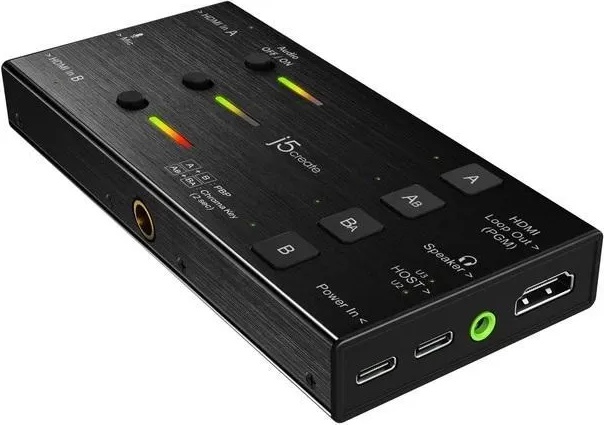

The JVA06 Dual HDMI Video Capture allows users to capture uncompressed 1080p video from two HDMI sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image. With a flexible audio connection via HDMI or analog 3.5 mm port, you can record audio directly from your HDMI sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI A and HDMI B). The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time. audio input HDMI or 3.5 mm Mic in audio output HDMI or 3.5 mm Speaker out
host connector 1 - USB-C Male ports 1 - USB-C 3.0 (host)
1 - USB-C 3.0 (power)
2 - HDMI input
1 - HDMI output
1 - Mic in
1 - Speaker out
2 - Cold shoes power source Bus-powered or self-powered (USB-C PD power)
video input
2 - HDMI Female
video output
1 - HDMI Female
audio channel 2.1 via HDMI
audio frequency 48 kHz
compressions
USB 2.0: MJPEG
USB 3.0: YUV 4:2:2
encode format USB 3.0: YUV 4:2:2
USB 2.0: MJPEG
hdr supported No
headset
40 mW output power into 16 at 3.3V
THD -75 dB at 20 mW
max display refresh rate 60 Hz Stereo microphone supported
24-bit sigma-delta ADC
supported resolution - input Progressive: 1920 x 1080p @ 24/25/30/50/60
1680 x 1050p @ 60
1600 x 1200p/900p @ 60
1440 x 900p @ 60
1400 x 1050p @ 60
1366 x 768p @ 60
1360 x 768p @ 60
1280 x 1024p/800p/720p @ 60
1024 x 768p @ 60
800 x 600p @ 60
720 x 576p/480p @ 60
640 x 480p @60
Interlace: 1920 x 1080i @ 50/60
720 x 576i @ 50
720 x 480i @ 60 supported resolution - output 1920 x 1080p @ 60
1280 x 720p @ 60
720 x 576p @ 50
720 x 480p @ 60
640 x 480p @ 60 input current Up to 3A
input voltage Up to 20V
output current Up to 3A
output voltage Up to 20V
power consumption ≦ 1000mA
power delivery Up to 60W via USB-C cable length
USB-C to USB-C: 23.6 inch (60 cm)
USB-C to USB Type-A 23.6 inch (60 cm)
color Black
enclosure type Aluminum
operating humidity < 85% non-condensing
operating temperature 32 to 118°F (0 to 45°C)
product depth 2.5 inch (63.7 mm)
product height 0.7 inch (18.4 mm)
product weight 6 oz (172g)
product width 5.3 inch (134.6 mm)
storage humidity < 85% non-condensing
storage temperature 14 to 149°F (-10 to 65°C)
